Pressure Washer Hose Accessories

Flexzilla® Pressure Washer Hose accessories include plugs, couplers and nipples that easily connect and disconnect without tools, so they’re ideal for frequent connecting and disconnecting of components. Our spray guns and handles feature forged brass housing for maximum strength and stainless steel parts for chemical resistance. The nozzle kits are color coded to quickly identify degree of spray. And our lances are nickel chrome plated steel to prevent rust.

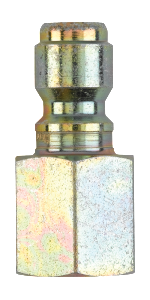

PW3510

Quick Connect Plugs – Features:

  • Ideal for frequent connecting and disconnecting of components
  • Easily connect and disconnect without tools

Part No.

Description

Connection Size

Material

PW3510

Quick Connect Plug

1/4 in. FNPT

Plated Steel

PW3570

Quick Connect Plug – Economy

1/4 in. FNPT

Plated Steel

PW3511

Quick Connect Plug

1/4 in. MNPT

Plated Steel

PW3571

Quick Connect Plug – Economy

1/4 in. MNPT

Plated Steel

PW3530

Quick Connect Plug

3/8 in. FNPT

Plated Steel

PW3590

Quick Connect Plug – Economy

3/8 in. FNPT

Plated Steel

PW3531

Quick Connect Plug

3/8 in. MNPT

Plated Steel

PW3591

Quick Connect Plug – Economy

3/8 in. MNPT

Plated Steel

PW3520

Quick Connect Couplers – Features:

  • Ideal for frequent connecting and disconnecting of components
  • Knurled socket sleeve to enhance grip
  • Easily connect and disconnect without tools

Part No.

Description

Connection Size

Material

PW3520

Quick Connect Coupler

3/8 in. FNPT

Brass

PW3500

Quick Connect Coupler – Economy

1/4 in. FNPT

Brass

PW3560

Quick Connect Coupler – Economy

1/4 in. FNPT

Brass

PW3580

Quick Connect Coupler – Economy

3/8 in. FNPT

Brass

PW3023

Screw Couplers – Features & Specifications:

  • Ideal for frequent connecting and disconnecting of components
  • Easily connect and disconnect without tools
  • O-Ring: EPDM
  • Outlet: M22
  • Yoke/ID: M14
  • Temp. Rating: 300°F (148.9°C)
  • Pressure Rating: 5,800 psi

Part No.

Description

Connection Size

Material

PW3021

Screw Coupling

M22 x 1/4 in. FNPT

Brass

PW3023

Screw Coupling

M22 x 3/8 in. FNPT

Brass

PW3032

Swivel Couples and Nipples – Features & Specifications:

  • Ideal for frequent connecting and disconnecting of components
  • Connects 3/8 in. pressure washer equipment using screw nipples
  • Converts M22 metric threads to standard
  • Easily connect and disconnect without tools
  • O-Ring: EPDM
  • Outlet: M22
  • Yoke/ID: M14
  • Temp. Rating: 300°F (148.9°C)
  • Pressure Rating: 5,800 psi

Part No.

Description

Connection Size

Material

PW3032

Swivel Coupling

M22 x 1/4 in. MNPT

Brass

PW3002

Nipple

M22 x 1/4 in. FNPT

Brass

PW3003

Nipple

M22 x 1/4 in. MNPT

Brass

PW3004

Nipple

M22 x 3/8 in. FNPT

Brass

PW3005

Nipple

M22 x 3/8 in. MNPT

Brass

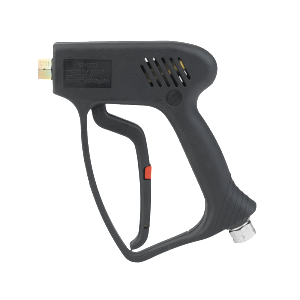

PW2000

Spray Guns and Handles – Features & Specifications:

  • Forged brass housing for maximum strength
  • Stainless steel spring, needle, ball and seat for chemical resistance
  • Special heat and chemical resistant seals for optimum performance
  • Flow Rate: 10.4 GPM
  • Inlet: 3/8 in. FNPT
  • Outlet: 1/4 in. FNPT
  • Temp. Rating: 300°F (148.9°C)
  • Pressure Rating: 5,000 psi

Part No.

Description

PW2000

Spray Gun 3/8F NPT, 5,000 psi

PW2305

Spray Gun – Easy pull 3/8F NPT, 5,000 psi

PW1020

Lance Handle

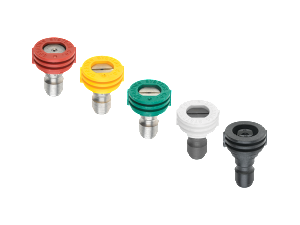

PW4000

Nozzle Kit  – Features & Specifications:

  • Varying degrees of spray for a variety of applications
  • Color coded to quickly identify degree of spray
  • Easily connect and disconnect without tools

Specifications:

  • Pressure Rating: 4,000 psi
  • Red 0° – Blasting Nozzle
  • Yellow 15° – Chiseling Nozzle
  • Green 25° – Flushing Nozzle
  • White 40° – Wash Nozzle
  • Black 65° – Soap Nozzle



Part No.

Description

PW4000

Nozzle Kit 0, 15, 25, 40, 65° spray pattern x 4.5 orifice/soap

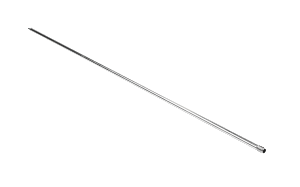

PW1013

Lances – Features & Specifications:

  • Can be used for hot or cold water applications
  • Nickel chrome plated steel (prevents rust)
  • Suitable for use with corrosive chemicals
  • Rolled threads
  • Provide a more consistent seal
  • Inlet: 1/4 in. MNPT
  • Outlet: 1/4 in. MNPT
  • Temp. Rating: 300°F (148.9°C)
  • Pressure Rating: 5,800 psi

Part No.

Description

PW1013

Lance 36 in. – extension for Pressure Washer Gun

PW1015

Lance 48 in. – extension for Pressure Washer Gun
