Whip Hoses

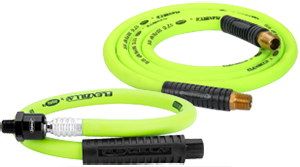

Flexzilla® Whip Air Hose

The Flexzilla® Whip Air Hose is a short length of hose with a swivel coupler on one end to increase longevity of the main hose and reduces user fatigue by eliminating the weight of the coupler/plug. With a 30º tilt and 360º swivel action, the ball increases mobility in tight work spaces. Overall you get improved air tool ergonomics.

Features:

  • Extreme all-weather flexibility, even in subzero temperatures! (-40° to 140°F)
  • Won’t kink under pressure
  • Superior bend radius
  • Lays flat – no memory
  • Anodized aircraft aluminum ends
  • Max. working pressure at 70°F: 300 psi
  • Durable and abrasion-resistant outer cover
  • Includes bend restrictors to reduce wear and tear, prolonging the life of the hose

Product Choices

Available in a wide variety of lengths, dimensions and fittings to meet all your needs.

Part No.

Hose Length

Hose I.D.

Fittings

HFZ1405YW2B

5 ft.

1/4 in.

1/4 in. MNPT Ball Swivel x 1/4 in. FNPT

HFZ3802YW2B

2 ft.

3/8 in.

1/4 in. MNPT Ball Swivel x 1/4 in. FNPT

HFZ3804YW2B

4 ft.

3/8 in.

1/4 in. MNPT Ball Swivel x 1/4 in. FNPT

HFZ3805YW2B

5 ft.

3/8 in.

1/4 in. MNPT Ball Swivel x 1/4 in. FNPT

HFZ3806YW2B

6 ft.

3/8 in.

1/4 in. MNPT Ball Swivel x 1/4 in. FNPT

HFZ1202YW3S

2 ft.

1/2 in.

3/8 in. MNPT Swivel x 3/8 in. MNPT

HFZ1204YW3S

4 ft.

1/2 in.

3/8 in. MNPT Swivel x 3/8 in. MNPT

HFZ1206YW3S

6 ft.

1/2 in.

3/8 in. MNPT Swivel x 3/8 in. MNPT

HFZ1208YW3S

8 ft.

1/2 in.

3/8 in. MNPT Swivel x 3/8 in. MNPT

HFZ1202YW4S

2 ft.

1/2 in.

1/2 in. MNPT Swivel x 1/2 in. MNPT

HFZ1204YW4S

4 ft.

1/2 in.

1/2 in. MNPT Swivel x 1/2 in. MNPT

HFZ1206YW4S

6 ft.

1/2 in.

1/2 in. MNPT Swivel x 1/2 in. MNPT

HFZ1208YW4S

8 ft.

1/2 in.

1/2 in. MNPT Swivel x 1/2 in. MNPT



Flexzilla® Pro Custom Length Whip Hoses

The Flexzilla® Pro Custom Length Whip Hose with High Flow Ball Swivel is a short length of hose with a swivel coupler on one end to increase longevity of the main hose. With a 30º tilt and 360º swivel action, the High Flow Ball Swivel increases mobility in tight work spaces. When used with High Flow couplers and plugs, the Flexzilla Pro Custom Length Whip Hose with High Flow Ball Swivel (HFZP3806YW2B) provides maximum torque, maximum RPM and the best performance for your air tools. Flexzilla Pro High Flow provides Twice The Flow – when compared to standard interchanges!

Features

  • Field Repairable – Reusable anodized aircraft aluminum fittings
  • Build Custom Whip Hose up to 6 ft. in length
  • Extreme all-weather flexibility (-40° to 140°F)
  • Won’t kink under pressure
  • Lightweight
  • Durable, long-lasting
  • Anodized aircraft aluminum ends
  • Max. working pressure at 70°F: 300 psi
  • High Flow Ball Swivel Plug rotates 360° at a 30° angle
  • HFZP3806YW2B Includes: 6 ft. Whip Hose with High Flow Ball Swivel plus Flexzilla Pro Reusable Fitting and Bend Restrictor, 1/4 in. MNPT (RP900375)
  • HFZP1406YW2B Includes: 6 ft. Whip Hose with Ball Swivel plus Flexzilla Pro Reusable Fitting and Bend Restrictor, 1/4 in. MNPT (RP900250)



Product Choices

Available in a wide variety of lengths, dimensions and fittings to meet all your needs.

Part No.

Hose Length

Hose I.D.

Fittings

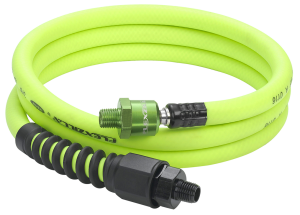

HFZP3806YW2B

6 ft.

3/8 in.

1/4 in. MNPT High Flow Ball Swivel

with 1/4 in. MNPT Reusable Fitting (RP900375)

HFZP1406YW2B

6 ft.

1/4 in.

1/4 in. MNPT Ball Swivel with

1/4 in. MNPT Reusable Fitting (RP900250)
