Pro Air Hose and Kits

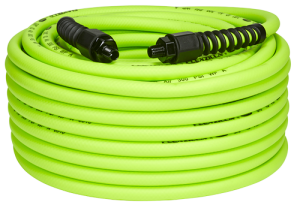

Pro Air Hose

Flexzilla® Pro Field Repairable Air Hose features extreme all-weather flexibility, rugged durability and won’t kink under pressure. Its unique Flexible Hybrid Polymer material redefines flexibility. With reusable anodized aircraft aluminum fittings, the Flexzilla Pro Air Hose can be repaired on the job site in a few simple steps. (2-year warranty)

Features

  • Field Repairable – Reusable anodized aircraft aluminum fittings.
  • Extreme all-weather flexibility, even in subzero temperatures (-40° to 140°F)
  • Won’t kink under pressure
  • Lightweight and easy to handle
  • Lays flat – no memory
  • Durable and abrasion-resistant outer cover
  • Max. working pressure at 70°F: 300 psi
  • Flexzilla Pro Reusable Fittings include bend reinforcement to reduce wear and tear, prolonging the life of the hose

Videos


Assembly Process:

CUT – Measure and cut desired length of hose at 90° angle. INSTALL – Slide spiral fitting and nut onto hose. Push hose onto fitting until hose reaches threads. TIGHTEN – Tighten fitting nut until snug. Slide bend restrictor up adn snap onto nut.

Product Choices

Flexzilla® Pro Air Hose is available in a wide variety of lengths, dimensions and fittings to meet all your needs.

Part No.

Hose Length

Hose I.D.

Fittings

HFZP1425YW2

25 ft.

1/4 in.

1/4 in. MNPT

HFZP1450YW2

50 ft.

1/4 in.

1/4 in. MNPT

HFZP14100YW2

100 ft.

1/4 in.

1/4 in. MNPT

HFZP3825YW2

25 ft.

3/8 in.

1/4 in. MNPT

HFZP3835YW2

35 ft.

3/8 in.

1/4 in. MNPT

HFZP3850YW2

50 ft.

3/8 in.

1/4 in. MNPT

HFZP38100YW2

100 ft.

3/8 in.

1/4 in. MNPT



Pro Air Hose Kits

This convenient hose kit features the revolutionary Flexzilla® Pro Flexible Hybrid Polymer air hose paired with a Red Industrial (Type D) ColorConnex® coupler and plug set (one each). Combining Flexzilla’s revolutionary design and the convenient color coding of ColorConnex, you get two great products in one. Plus, since the thread sealer is already installed on the coupler and plug, you’re ready to go as soon as you reach the job site.

Kit Includes:

• Flexzilla Pro Air Hose

• Pre-sealed threads

• Patented ColorConnex Red Industrial (Type D) Coupler & Plug

Product Choices

Flexzilla Pro Air Hose Kits are available in a wide variety of lengths, dimensions and fittings to meet all your needs.

Flexzilla Pro Air Hose Kits

Part No.

Hose Length

Hose I.D.

Fittings

HFZP1425YW2-D

25 ft.

1/4 in.

1/4 in. MNPT

HFZP1450YW2-D

50 ft.

1/4 in.

1/4 in. MNPT

HFZP1450YW2-D-8X

50 ft.

1/4 in.

1/4 in. MNPT

HFZP14100YW2-D

100 ft.

1/4 in.

1/4 in. MNPT

HFZP14100YW2-D-10X

100 ft.

1/4 in.

1/4 in. MNPT

HFZP3825YW2-D

25 ft.

3/8 in.

1/4 in. MNPT

HFZP3850YW2-D

50 ft.

3/8 in.

1/4 in. MNPT

HFZP3850YW-D-8X

50 ft.

3/8 in.

1/4 in. MNPT

HFZP38100YW2-D

100 ft.

3/8 in.

1/4 in. MNPT

Part No.’s with -8X or -10X suffix included 8 or 10 hose coils in a retail merchandiser display

WARNING: Use only on compressed air lines at a maximum operating pressure of 300 psi. For safety, do not exceed the pressure limitation of the hose and/or air-operated device you are using. This product is not designed for use with fluids, for non-industrial applications, or for life support systems. Failure to follow these directions exactly may result in personal injury or property damage.
