Pro High Flow Couplers & Plugs

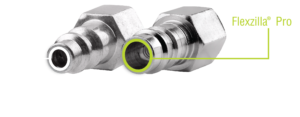

Flexzilla® Pro High Flow couplers and plugs allow Twice The Flow to your air tools. Connect Flexzilla High Flow fittings from your tool all the way to the compressor. This ensures the best performance your air system can provide. For maximum efficiency, use Flexzilla Pro High Flow.

Features

  • Push-To-Connect System
  • Maximum Torque
  • Maximum RPM
  • Ideal for spray guns and impact
    tools or any high output tool

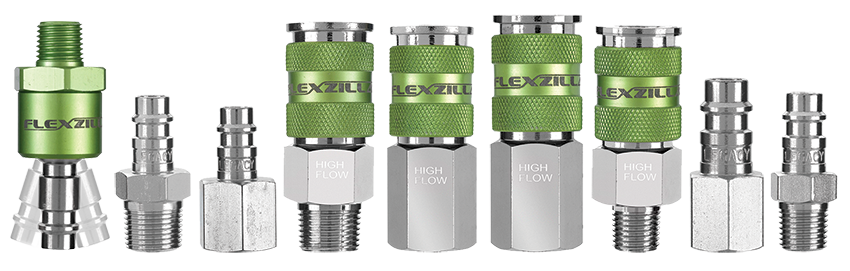

Product Choices

Available in a variety of dimensions to meet all your needs.

Plugs

Part No. Connection Size Material Contents
A53430FZ-X 1/4 in. NPT Nickel Plated Steel (1) FNPT Plug
A53440FZ-X 1/4 in. NPT Nickel Plated Steel (1) MNPT Plug
A53630FZ-X 3/8 in. NPT Nickel Plated Steel (1) FNPT Plug
A53640FZ-X 3/8 in. NPT Nickel Plated Steel (1) MNPT Plug
A53440FZBS 1/4 in. NPT Nickel Plated Steel (1) MNPT Plug
A53440FZBS-X 1/4 in. NPT Nickel Plated Steel (1) MNPT Plug

Couplers

Part No. Connection Size Material Contents
A53416FZ 1/4 in. NPT Steel/Aluminum* (1) FNPT Coupler
A53416FZ-X 1/4 in. NPT Steel/Aluminum* (1) FNPT Coupler
A53426FZ 1/4 in. NPT Steel/Aluminum* (1) MNPT Coupler
A53426FZ-X 1/4 in. NPT Steel/Aluminum* (1) MNPT Coupler
A53616FZ 3/8 in. NPT Steel/Aluminum* (1) FNPT Coupler
A53616FZ-X 3/8 in. NPT Steel/Aluminum* (1) FNPT Coupler
A53626FZ 3/8 in. NPT Steel/Aluminum* (1) MNPT Coupler
A53626FZ-X 3/8 in. NPT Steel/Aluminum* (1) MNPT Coupler

2 Piece Plugs

Part No. Connection Size Material Contents
A53430FZ-2PK 1/4 in. NPT Nickel Plated Steel (2) FNPT Plugs
A53440FZ-2PK 1/4 in. NPT Nickel Plated Steel (2) MNPT Plugs
A53440FZ-8PK-N 1/4 in. NPT Nickel Plated Steel (2) MNPT Plugs
A53630FZ-2PK 3/8 in. NPT Nickel Plated Steel (2) FNPT Plugs
A53640FZ-2PK 3/8 in. NPT Nickel Plated Steel (2) MNPT Plugs

3 Piece Coupler & Plug Kit

Part No. Connection Size Material Contents
A53452FZ 1/4 in. NPT Steel/Aluminum* (1) FNPT Coupler, (1) FNPT Plug and (1) MNPT Plug

7 Piece Coupler & Plug Kits

A53457FZ-10X1/4 in. NPTSteel/Aluminum*(1) FNPT Coupler, (1) MNPT Coupler, (2) FNPT Plug and (3) MNPT Plug

Part No. Connection Size Material Contents
A53457FZ 1/4 in. NPT Steel/Aluminum* (1) FNPT Coupler, (1) MNPT Coupler, (2) FNPT Plug and (3) MNPT Plug
A53657FZ 3/8 in. NPT Steel/Aluminum* (1) FNPT Coupler, (1) MNPT Coupler, (2) FNPT Plug and (3) MNPT Plug

14 Piece Coupler & Plug Kit

Part No. Connection Size Material Contents
A53458FZ 1/4 in. NPT Steel/Aluminum* (2) FNPT Coupler, (2) MNPT Coupler, (4) FNPT Plug and (6) MNPT Plug

3-Way Manifold

Part No. Connection Size Material Contents
A86666FZ 1/4 in. NPT Steel/Aluminum* (1) 3-Way Flat Hex Manifold, (3) A53626FZ and (1) A53650FZ

*Nickel Plated Steel with Anodized Aluminum Sleeve
