Heavy Duty Safety Couplers & Plugs

Flexzilla® Pro Heavy Duty Safety Couplers and Plugs feature ZVR™ Technology, Zero Valve Restriction provides maximum CFM possible. Paired with quick, safe and easy connections, Flexzilla Pro HD Couplers and Plugs are the best choice for maximum performance from your air tools.

Features

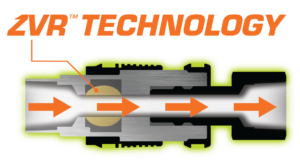

  • ZVR™ Technology – Zero Valve Restriction
    • Feeds your tool the maximum CFM possible
  • Safety Coupler
    • Connect and disconnect under zero pressure
    • Non-marring

Quick, Safe & Easy Connections

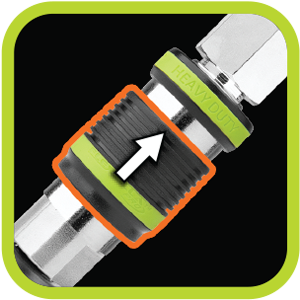

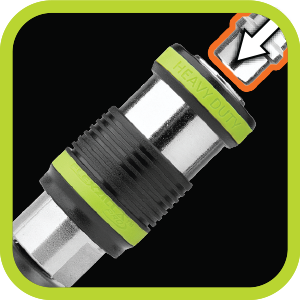

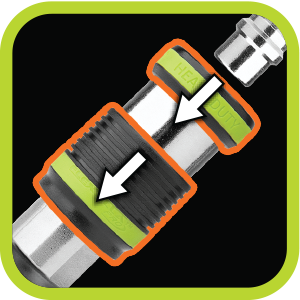

Push-to-connect under zero pressure Push sleeve up to open valve and engage air flow Pull sleeve down to shut off air flow and pull top collar down to disengage plug under zero pressure

Product Choices

Available in a variety of dimensions to meet all your needs.

Plugs

Part No. Connection Size Body Size Type Contents
A55630FZ 3/8 in. FNPT 1/2 in. H (1) FNPT Plug
A55640FZ 3/8 in. MNPT 1/2 in. H (1) MNPT Plug
A55830FZ 1/2 in. FNPT 1/2 in. H (1) FNPT Plug
A55840FZ 1/2 in. MNPT 1/2 in. H (1) MNPT Plug

Couplers

Part No. Connection Size Body Size Type Contents
A55618FZ 3/8 in. FNPT 1/2 in. H (1) FNPT Coupler
A55628FZ 3/8 in. MNPT 1/2 in. H (1) MNPT Coupler
A55818FZ 1/2 in. FNPT 1/2 in. H (1) FNPT Coupler
A55828FZ 1/2 in. MNPT 1/2 in. H (1) MNPT Coupler

5-Piece Kits

Part No. Connection Size Body Size Type Contents
A55656FZ 3/8 in. NPT 1/2 in. H (1) FNPT Coupler, (1) MNPT Coupler, (1) FNPT Plug, (2) MNPT Plugs
A55856FZ 1/2 in. NPT 1/2 in. H (1) FNPT Coupler, (1) MNPT Coupler, (1) FNPT Plug, (2) MNPT Plugs
