Air Hose Reels

Flexzilla® offers a variety of Air Hose Reels to make reeling in hoses easy. Some models feature Levelwind™ Technology – Flexzilla’s unique winding system that automatically layers hose back and forth across the reel ensuring that the hose is coiled smoothly, easily…every time. All of our Air Hose Reels enhance your work efficiency and are heavy-duty to stand up to frequent use.

Features

  • Latching Mode Switch – Choose from latching hose every 3 ft. for extended use or switch to free run for immediate automatic rewinding
  • Seven Position Locking Bracket – These reels can swivel freely on a mounting bracket up to 135° or can be locked into place using the locking brace. Up to seven different locking angles can be utilized (L8300-W)
  • Adjustable Hose Stopper – Increase or decrease the length of the hose that remains when hose is fully retracted
  • Extra Large Swivel – A 3/4 in. swivel reduces flow restrictions and allows for maximum flow
  • Free Standing Base – Portable – Use freestanding or mounted on wall or ceiling. Flat base allows reel to rest on the ground
  • Built-In Handle – For carrying ease
  • Durable Construction – Made from durable UV stabilized polypropylene
  • Lead-in Hose Included – 5 ft. x 1/4 in. MNPT
  • Assembled in USA of US and global components

Product Choices

Available in a wide variety of lengths, dimensions and fittings to meet all your needs.

Flexzilla Reels with Levelwind™ Technology – Assembled in America

Part No.

Hose I.D.

Hose Length

Working
Pressure
@ 70° F

Reel Inlet

Hose Outlet

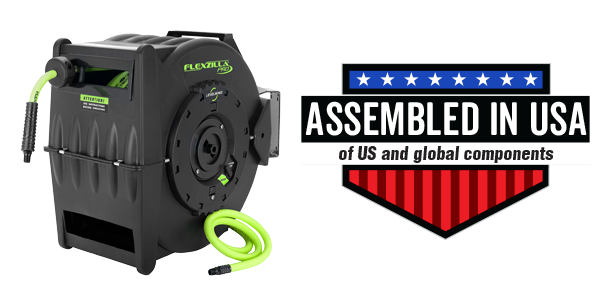

L8305FZ

3/8 in.

50 ft.

300 psi

3/4 in. – 11½ Male GHT

1/4 in. MNPT

L8306FZ

3/8 in.

75 ft.

300 psi

3/4 in. – 11½ Male GHT

1/4 in. MNPT

L8335FZ

1/2 in.

50 ft.

300 psi

3/4 in. – 11½ Male GHT

3/8 in. MNPT

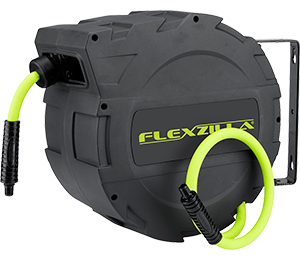

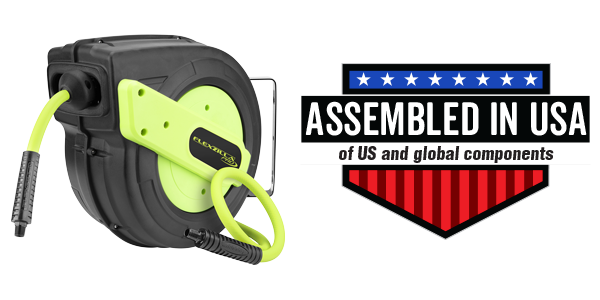

Flexzilla – Retractable Reel

Part No.

Hose I.D.

Hose Length

Working
Pressure
@ 70° F

Hose Outlet

Lead-in Hose

L8230FZ

3/8 in.

30 ft.

150 psi

1/4 in. MNPT

L8250FZLI

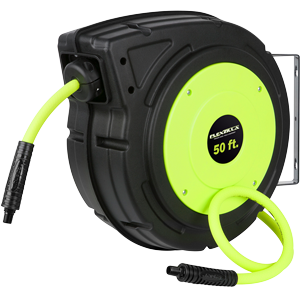

L8250FZ

3/8 in.

50 ft.

150 psi

1/4 in. MNPT

L8250FZLI

Flexzilla – Open Face, Single Axle Arm Support

Part No.

Hose I.D.

Hose Length

Working
Pressure
@ 70° F

Reel Inlet

Hose Outlet

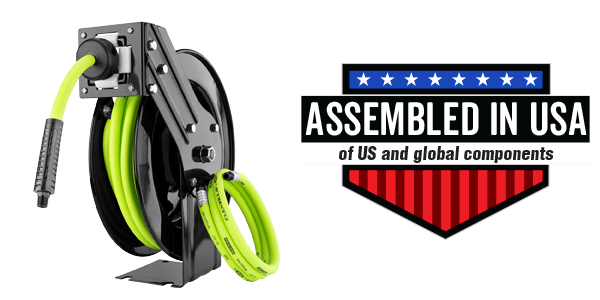

L8603FZ

3/8 in.

25 ft.

300 psi

1/4 in. FNPT

1/4 in. MNPT

L8611FZ

3/8 in.

50 ft.

300 psi

3/8 in. FNPT

1/4 in. MNPT

L8741FZ

Flexzilla – Open Face, Dual Axle Arm

Part No.

Hose I.D.

Hose Length

Working
Pressure
@ 70° F

Reel Inlet

Hose Outlet

Lead-in Hose

L8711FZ

3/8 in.

50 ft.

300 psi

3/8 in. FNPT

3/8 in. MNPT

 L8611FZLI

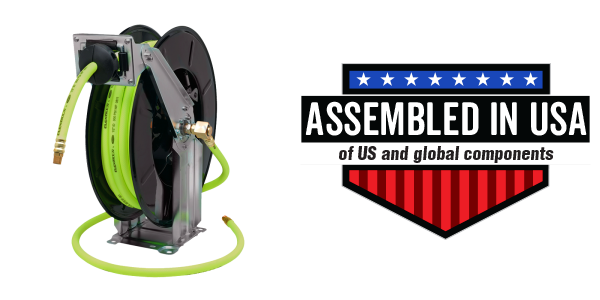

L8741FZ

1/2 in.

50 ft.

300 psi

1/2 in. FNPT

1/2 in. MNPT

L8741FZLI

L8041FZ

Flexzilla – Open Face, Single Arm

Part No.

Hose I.D.

Hose Length

Working
Pressure
@ 70° F

Reel Inlet

Hose Outlet

L8011FZ

3/8 in.

50 ft.

300 psi

3/8 in. FNPT

3/8 in. MNPT

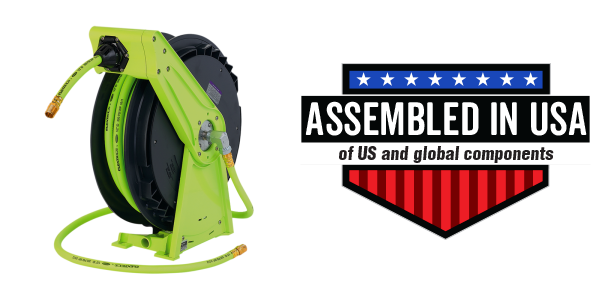

L8041FZ

1/2 in.

50 ft.

300 psi

1/2 in. FNPT

1/2 in. MNPT

Flexzilla – Manual, Fixed, Heavy Duty

Part No.

Hose I.D.

Hose Length

Working
Pressure
@ 70° F

Reel Inlet

Hose Outlet

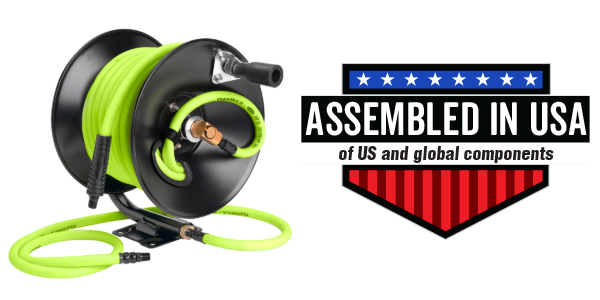

L8650FZ

3/8 in.

50 ft.

300 psi

1/4 in. FNPT

1/4 in. MNPT

L8550FZ

3/8 in.

50 ft.

300 psi

1/4 in. FNPT

1/4 in. MNPT

L8560FZ

3/8 in.

100 ft.

300 psi

1/4 in. FNPT

1/4 in. MNPT

L8652FZ

3/8 in.

100 ft.

300 psi

1/4 in. FNPT

1/4 in. MNPT

Flexzilla – Manual, Portable

Part No.

Hose I.D.

Hose Length

Working
Pressure
@ 70° F

Reel Inlet

Hose Outlet

Lead-in Hose

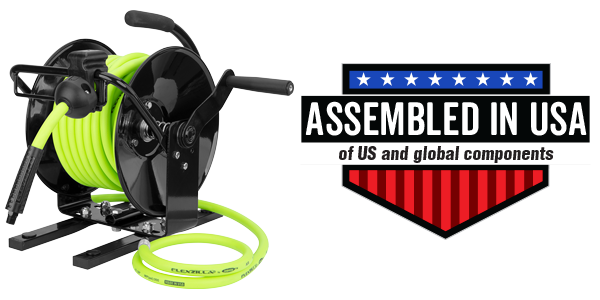

L8651FZ

3/8 in.

50 ft.

300 psi

1/4 in. MNPT

1/4 in. MNPT

L8651FZLI

L8654FZ

1/4 in.

100 ft.

300 PSI

1/4 in. MNPT

1/4 in. MNPT

L8654FZLI

Lead-In Hoses

Part No.

Lead-in Hose For
Part Number(s)

Hose I.D.

Hose Length

Fittings

Working
Pressure
@ 70° F

L8011FZLI

L8011FZ

3/8 in.

5 ft.

1/4 in. MNPT

300 psi

L8041FZLI

L8041FZ

1/2 in.

5 ft.

1/4 in. MNPT

300 psi

L8305FZLI

L8305FZ

L8306FZ

L8310FZ

3/8 in.

5 ft.

1/4 in. MNPT

300 psi

L8335FZLI

L8335FZ

1/2 in.

5 ft.

1/4 in. MNPT

300 psi

L8611FZLI

L8611FZ

L8711FZ

3/8 in.

5 ft.

3/8 in. MNPT

300 psi

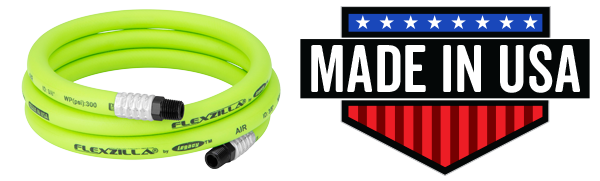

L8651FZLI

L8550FZ

L8560FZ

L8603FZ

L8650FZ

L8651FZ

L8652FZ

3/8 in.

5 ft.

1/4 in. MNPT

300 psi
