Reusable Fittings and Splicers – Air Hose

Flexzilla® Pro Reusable Fittings and Splicers allow you to quickly repair Flexzilla hose on the job site or create a custom length hose in just three easy steps.

Features

  • Reusable MNPT anodized aircraft aluminum fitting for Flexzilla and Flexzilla Pro air hose
  • Spiral bend restrictor increases hose flexibility

Videos


More Videos

Product Choices

Available in a variety of dimensions and fittings to meet all your needs.
RP900500

Reusable Fitting

Part No.

Fitting

Barb Size

RP900250

1/4 in. MNPT

1/4 in.

RP900375

1/4 in. MNPT

3/8 in.

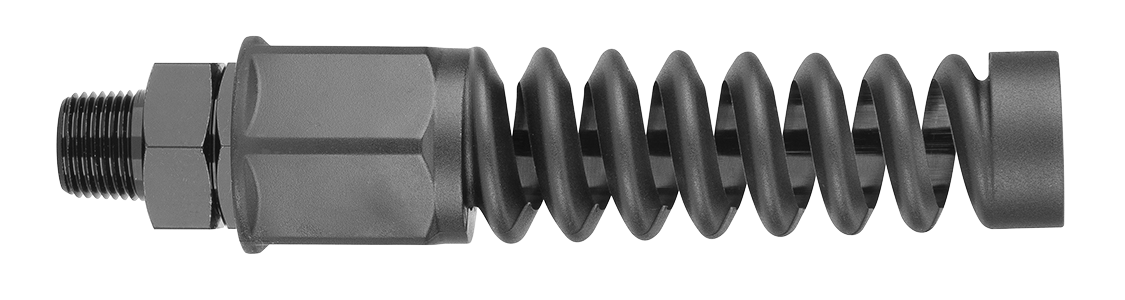

RP900500

3/8 in. MNPT

1/2 in.

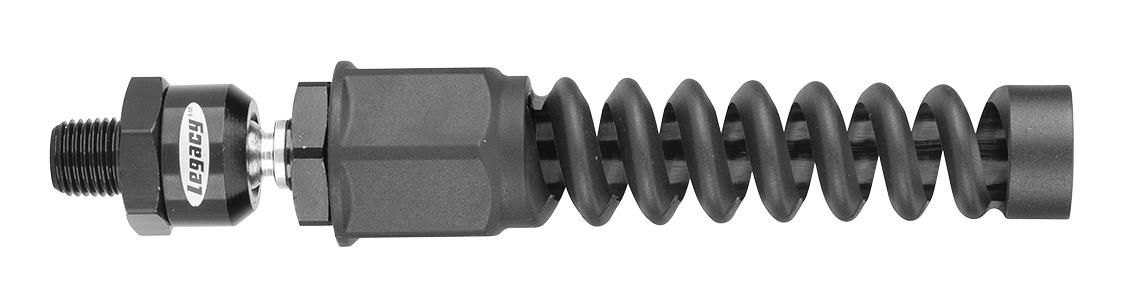

RP900250BS

Reusable Ball Swivel Fitting

Part No.

Fitting

Barb Size

RP900250BS

1/4 in. MNPT

1/4 in.

RP900375BS

1/4 in. MNPT

3/8 in.

RP900250S

Reusable Swivel Fitting

Part No.

Fitting

Barb Size

RP900250S

1/4 in. MNPT

1/4 in.

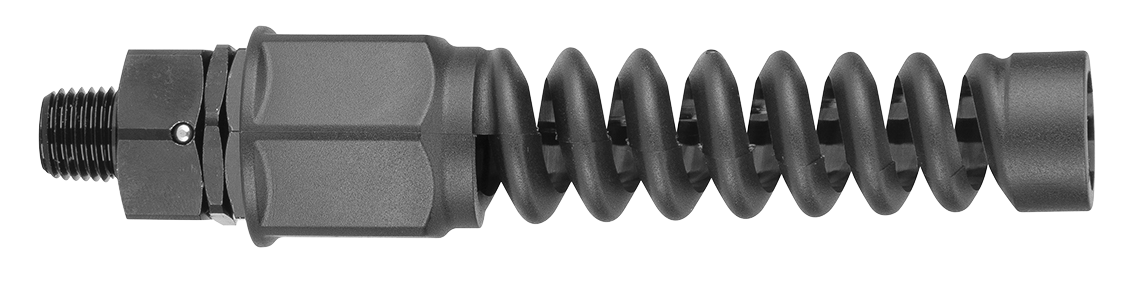

RP900375S

1/4 in. MNPT

3/8 in.

RP900500S

3/8 in. MNPT

1/2 in.

RP901375

Splicer

Reusable MNPT anodized aircraft aluminum fitting for Flexzilla and Flexzilla Pro Air Hose

Part No.

Barb Size

RP901250

1/4 in.

RP901375

3/8 in.

RP901500

1/2 in.



CUSTOM LENGTHS

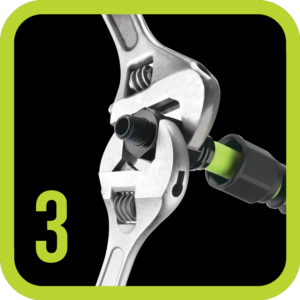

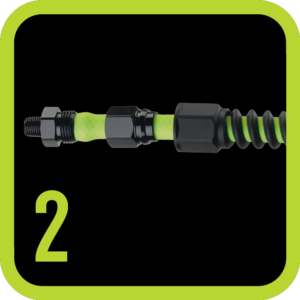

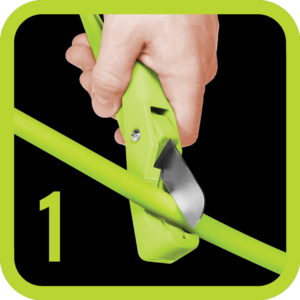

CUT – Measure and cut desired length of hose at 90° angle. INSTALL – Slide spiral fitting and nut onto hose. Push hose onto fitting until hose reaches threads. TIGHTEN – Tighten fitting nut until snug. Slide bend restrictor up adn snap onto nut.

FIELD REPAIRABLE

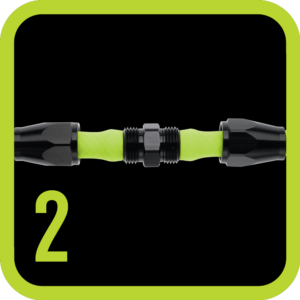

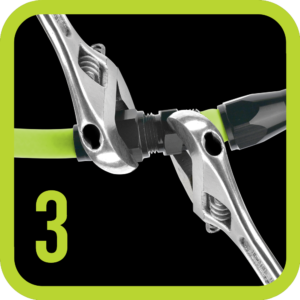

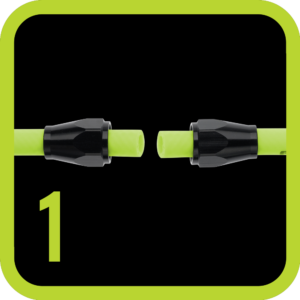

CUT – Cut damaged portion of hose at 90° angle. Slide fitting nuts onto hose. INSTALL – Slide hose onto fitting until hose reaches threads. TIGHTEN – Tighten fitting nuts until snug.
