Pro Custom Hose Center

The Flexzilla® Pro Custom Hose Center allows you to provide your customers with custom-length hose assemblies. Using Flexzilla Pro Reusable Ends, you can quickly and easily create custom length hose assemblies on site.

Features

  • Field repairable – Reusable anodized aircraft aluminum fittings
  • Extreme all-weather flexibility (-40° to 140°F)
  • Won’t kink under pressure
  • Lays flat – no memory
  • Durable and abrasion-resistant outer cover
  • 300 psi working pressure (Air)
  • 150 psi working pressure (Water)

Sizes Available

  • 1/4 in. Air
  • 3/8 in. Air
  • 1/2 in. Air
  • 3/4 in. Air
  • 1 in. Air
  • 5/8 in. Water

Videos



More Videos

Product Choices

Flexzilla Pro Custom Hose Rack and Shelf

Part No.

Description

Hose & Fittings

HFZBRP1

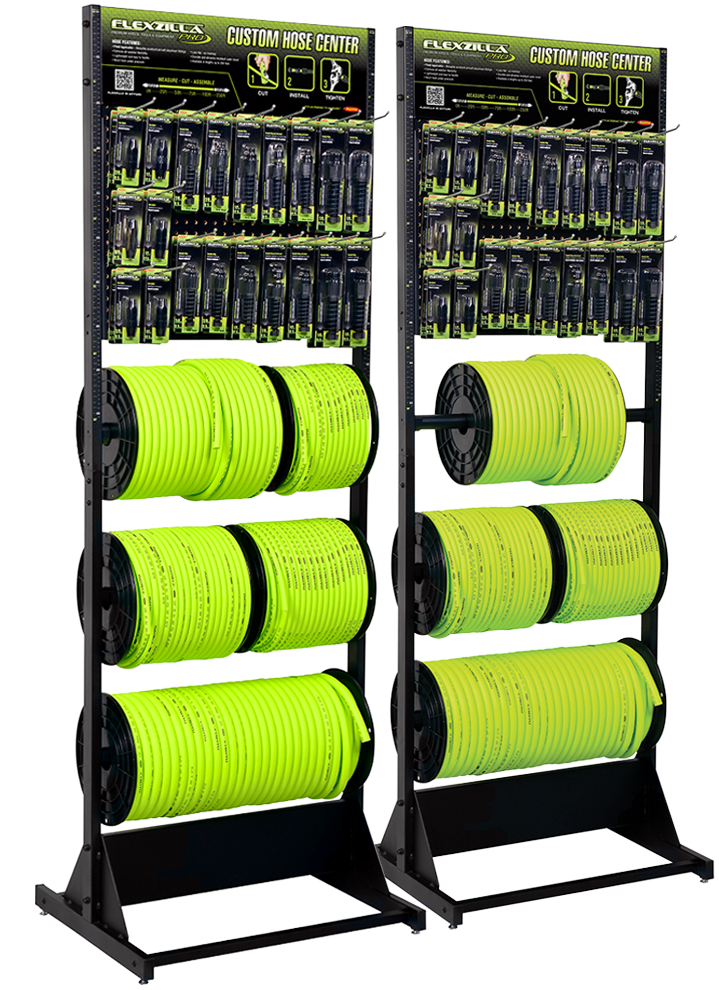

Flexzilla Pro Custom Hose Center (Loaded Freestanding Rack)

Included

HR-10

Flexzilla Pro Custom Hose Center (Freestanding Rack)

Not included

HR-11

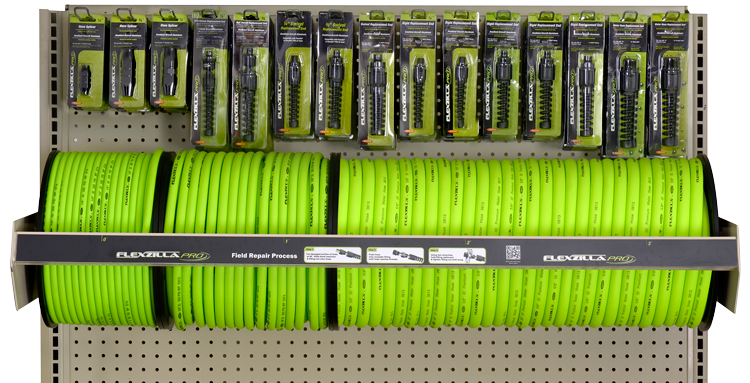

Flexzilla Pro Custom Hose Shelf (Pegboard Shelf)

Not included

Bulk Hose – All Included in HFZBRP1 Loaded Rack

Part No.

Spool Length

Hose I.D.

Quantity

HFZ14250YW

250 ft.

1/4 in.

2

HFZ38250YW

250 ft.

3/8 in.

2

HFZ12250YW

250 ft.

1/2 in.

1

HFZW58250YW

250 ft.

5/8 in.

1

Reusable Fittings – Air Hose – All Included in HFZBRP1 Loaded Rack

Part No.

Description

Fitting

Barb Size

Quantity

RP900250

Hose End Fitting and Bend Restrictor

1/4 in. MNPT

1/4 in.

10

RP900375

Hose End Fitting and Bend Restrictor

1/4 in. MNPT

3/8 in.

10

RP900500

Hose End Fitting and Bend Restrictor

3/8 in. MNPT

1/2 in.

10

RP900250BS

Hose End Ball Swivel Fitting and Bend Restrictor

1/4 in. MNPT

1/4 in.

10

RP900375BS

Hose End Ball Swivel Fitting and Bend Restrictor

1/4 in. MNPT

3/8 in.

10

RP900500S

Hose End Swivel Fitting and Bend Restrictor

3/8 in. MNPT

1/2 in.

10

Reusable Fittings – Water Hose – All Included in HFZBRP1 Loaded Rack

Part No.

Description

Fitting

Barb Size

Quantity

RP900625F

Hose End Fitting and Bend Restrictor – Female

3/4 in. – 11 1/2 GHT

5/8 in.

10

RP900625M

Hose End Fitting and Bend Restrictor – Male

3/4 in. – 11 1/2 GHT

5/8 in.

10

Reusable Splicers – Air Hose – All Included in HFZBRP1 Loaded Rack

Part No.

Description

Barb Size

Quantity

RP901250

MNPT Anodized Aircraft Aluminum Splicer

1/4 in.

10

RP901375

MNPT Anodized Aircraft Aluminum Splicer

3/8 in.

10

RP901500

MNPT Anodized Aircraft Aluminum Splicer

1/2 in.

10

Reusable Fittings – Air Hose – All NOT Included in HFZBRP1 Loaded Rack

Part No.

Description

Fitting

Barb Size

Quantity

RP900250S

Hose End Swivel Fitting and Bend Restrictor

1/4 in. MNPT

1/4 in.

10

RP900375S

Hose End Swivel Fitting and Bend Restrictor

1/4 in. MNPT

3/8 in.

10

Bulk Hose Program

bulkhose

Bulk Air Hose

Part No.

Spool Length

Hose I.D.

Hose Fittings

Air Hose Working Pressure Ratings

HFZ14250YW

250 ft.

1/4 in.

Not included

300 psi

HFZ38250YW

250 ft.

3/8 in.

Not included

300 psi

HFZ12250YW

250 ft.

1/2 in.

Not included

300 psi

HFZ34250YW

250 ft.

3/4 in.

Not included

200 psi

HFZ01250YW

250 ft.

1 in.

Not included

200 psi

Bulk Water Hose

Part No.

Spool Length

Hose I.D.

Hose Fittings

Water Hose Working Pressure Rating

HFZW58250YW

250 ft.

5/8 in.

Not included

165 psi



CUSTOM LENGTHS

CUT – Measure and cut desired length of hose at 90° angle. INSTALL – Slide spiral fitting and nut onto hose. Push hose onto fitting until hose reaches threads. TIGHTEN – Tighten fitting nut until snug. Slide bend restrictor up adn snap onto nut.

FIELD REPAIRABLE

CUT – Cut damaged portion of hose at 90° angle. Slide fitting nuts onto hose. INSTALL – Slide hose onto fitting until hose reaches threads. TIGHTEN – Tighten fitting nuts until snug.
